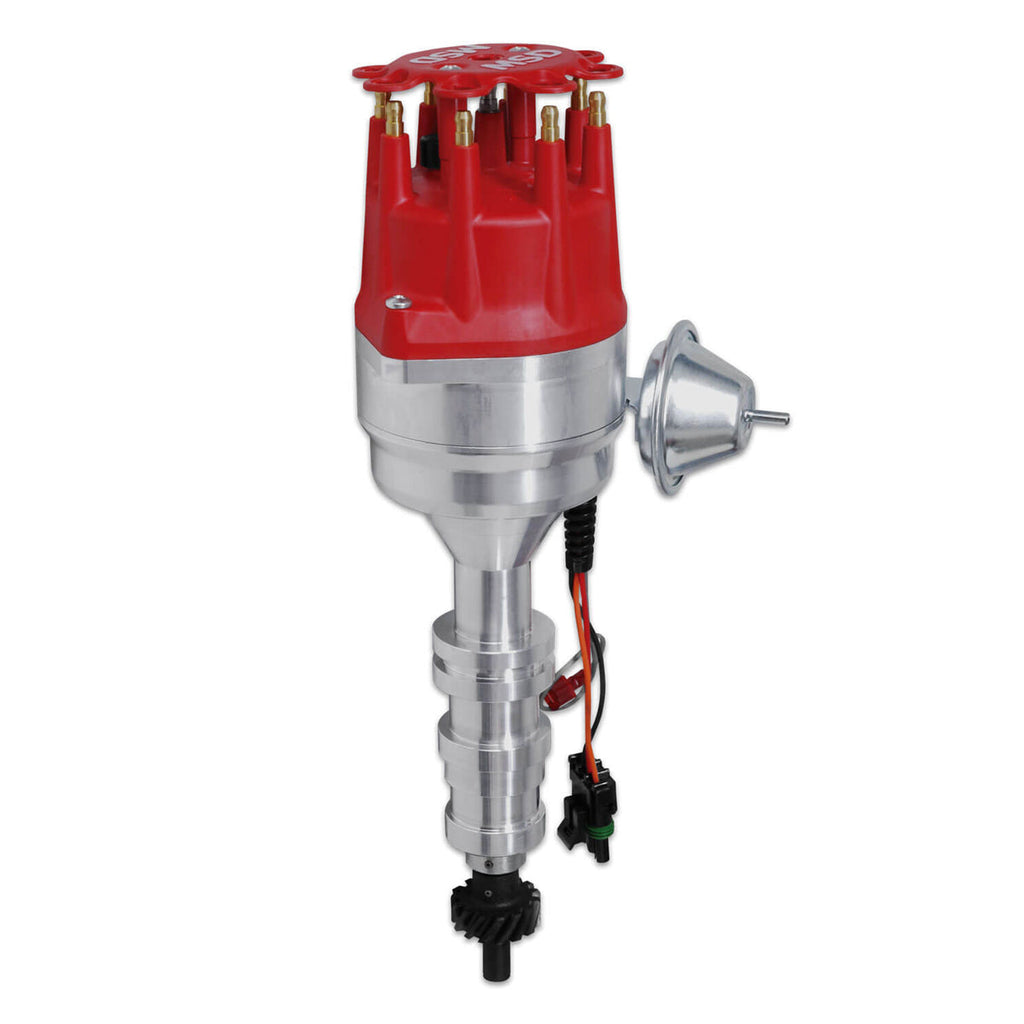

Features:
- Simple and clean installation with only three wires to connect
- CARB E.O. Approved
- Does not require an MSD Ignition Control
- Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Housing is 5/8?ǥ smaller in diameter than stock Ford distributors
- CNC machined billet aluminum housing and billet aluminum base
- Vacuum advance canister for improved economy (can be locked out)
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Powerful built-in module produces a 7.5 amp single spark through high rpm
- Includes built-in Rev Limiter!
