Notes:
- Throttle bore center sits 7.00" forward and only 2.00" up from the manifold mounting flange
- Recommend Edelbrock 90mm throttle body #350-3869 for optimum performance.

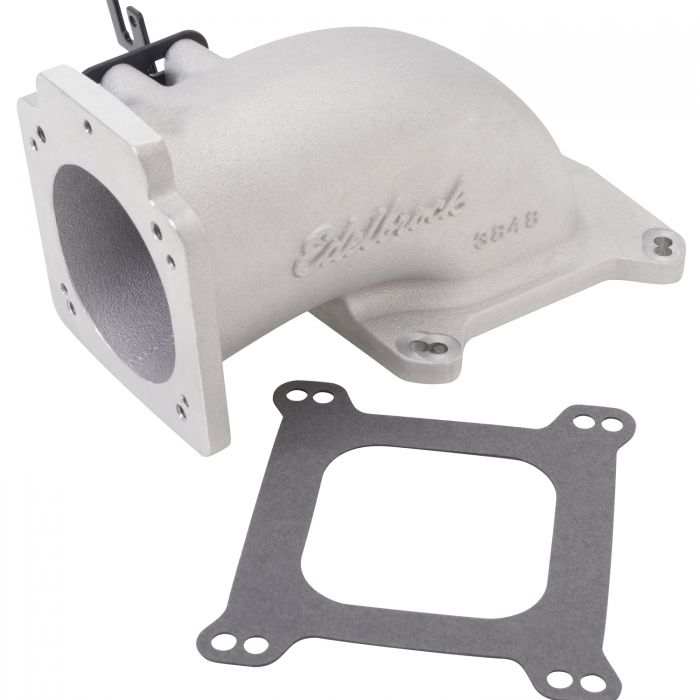

Intake Elbow Dimensions: - Length (Throttle Body Centerline to Intake Flange Centerline): 7.00"
- Bore Centerline: 2.00"
- Overall Height: 5.04"
- Throttle Body Flange Angle: 95°
