Description

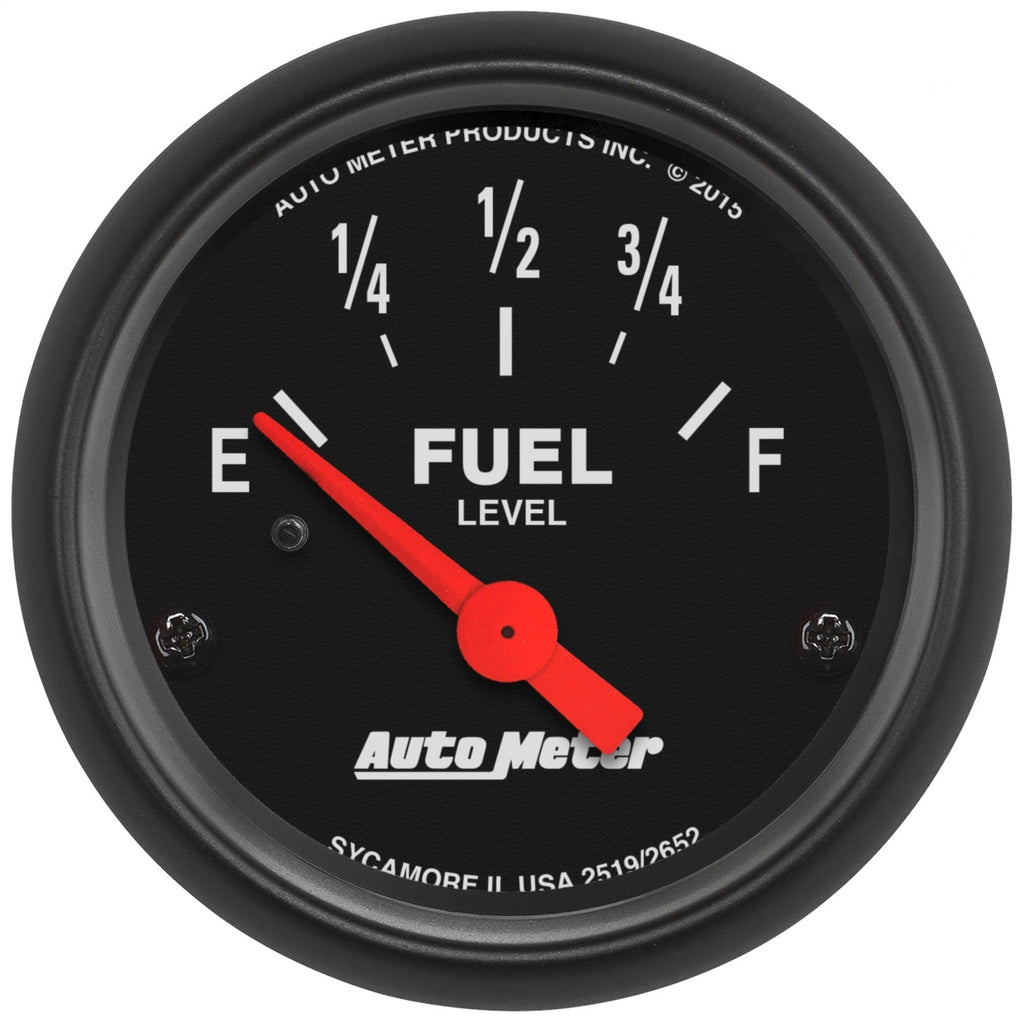

AutoMeter 2652 - Z-Series Gauge Fuel Level 2 1/16in 73e To 10f(Aftermarket Linear) Elec Z-Series
GAUGE; FUEL LEVEL; 2 1/16in.; 73OE TO 10OF(AFTERMARKET LINEAR); ELEC; Z-SERIES
Includes bulb and socket assembly with red and green bulb covers
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Incl. Bulb/Socket Assembly w/Red And Green Bulb Covers
- For Use w/73-10 Ohm Fuel Level Senders For Ford/Chrysler
- Features Air-Core Meter Movement
- Incl. Gauge Mounting Hardware And Instructions
Analog Or Digital: Analog
Bezel Color: Black
Bezel Style: Super Bezel
Block Adapter Included: No
Electric Or Mechanical: Electric
Face Color: Black
Fuel Line Adapter Included: No
Gauge Adapter Included: No
Gauge Size: 2.0625 in.
Gauge Size: 52.4mm
Gauge Type: Fuel Level
Hole Size: 0.0625 in.
Hole Size: 52.4mm
Illuminated: Yes
Lens: Flat Clear
Lighting Color: White Incandescent
Lighting Type: Incandescent
Liquid Filled: No
Movement Type: Electric Air-Core
Number Color: White
Outer Bezel Diameter: 2.3125 in.
Pointer Color: Fluorescent Red
Size: 2.3125 in.
Sweep: Short
Voltage: 8-18 V
