Description
AutoMeter 2258 - Replacement Senders for Short Sweep Electric Temperature Gauge Sender (250/300/340 Deg)
Temperature Sending Unit - 1/8 in NPT Male - Fittings Included - Electric Water Temperature Gauges - Kit
SENSOR; TEMPERATURE; 1/8NPTF MALE; REPLACEMENT; SHORT SWEEP ELEC.

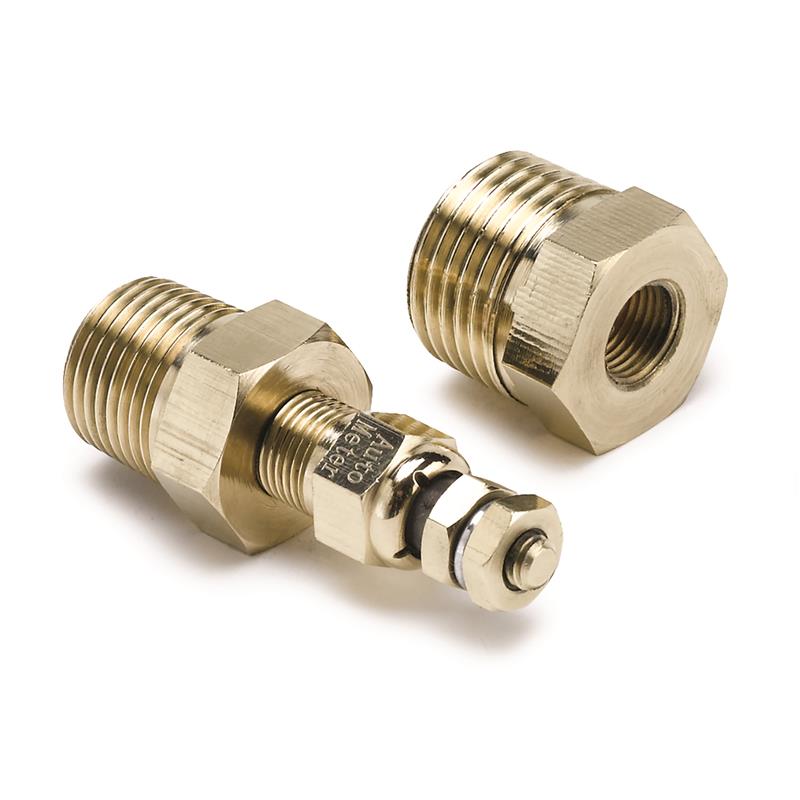

These replacement temperature sensors and included 3/8 in. and 1/2 in. adapter bushings are designed specifically for use with AutoMeter short sweep electric air core gauges.
- Replacement Sender
- Can Also Be Used For Digital Oil Pressure
- Sensor Body Material - Plated Steel
- Thread Size - 1/8 In. NPTF
- Incl. 1/4 NPT Adapter Bushing
- Measures 3.25 in. Long From End Threads To Tip
- 2 in. Diameter
Attachment Method: Screw-In
Connector Gender: Male
Dimensions: 2.000 in. x 0.500 in. x 0.500 in.
Fitting Type: 0.375 in. NPT and 0.500 in. NPT
Gauge Type: Feed/Sender
Temperature: 100-250° F
Thread Size: 1/8NPT
Type: Screw-In
Voltage: 12 V
