Description

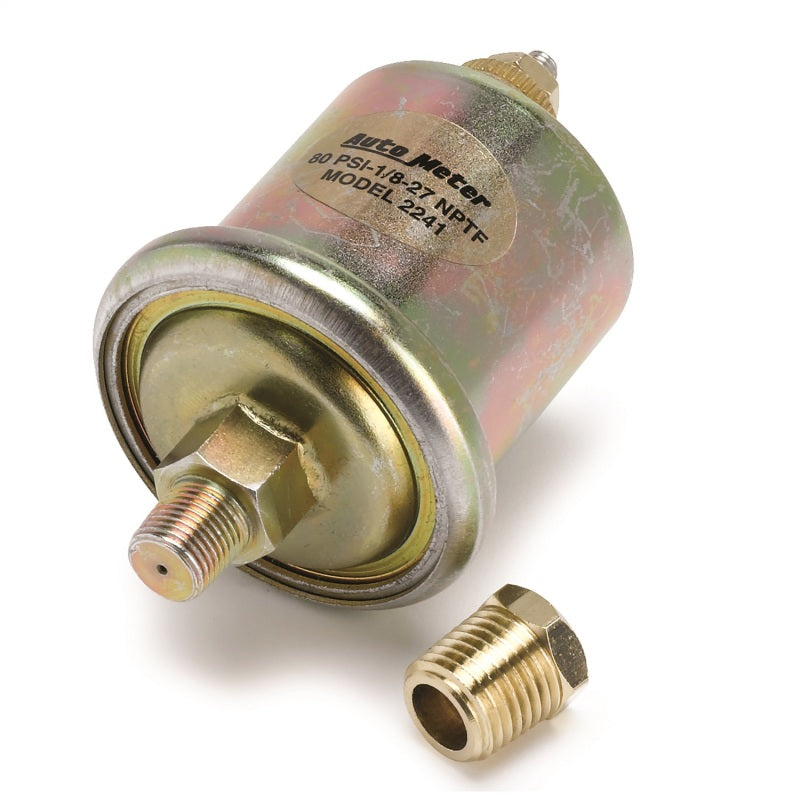

AutoMeter 2241 - Oil Pressure Sensor 0-80PSI 1/8in NPT Male For Short Sweet Elec
Pressure Sending Unit - 1/8 in NPT Male - 0-80 psi - Short Sweep Electric Oil Pressure Gauges - Each
SENSOR; OIL PRESSURE; 0-80PSI; 1/8in. NPT MALE; FOR SHORT SWEEP ELEC.
These replacement pressure sensors and included 1/4 in. adapters are designed for use with AutoMeter gauges produced prior to 1995 which are visually identifed by their light blue case and a distinctive black mask on the lens covering the pointer hubs. For current generation instruments, please see model #2242.
- Sensor Body Materlal - Plated steel
- Thread size - 1/8" NPTF
- Includes 1/4" NPT adapter bushing.
- Measures 3.25" long from end of threads to tip of sensor stud and 2" in diameter.
- Not compatible with fuel.
Attachment Method: Screw-In
Connector Gender: Male
Dimensions: 4.000 in. x 1.500 in. x 1.500 in.
Temperature: N/A
Thread Size: 1/8NPT
Type: Screw-In
Voltage: 12 V
